ADCA PRODUCTS

PIPELINE ANCILLARIES

SG IRON

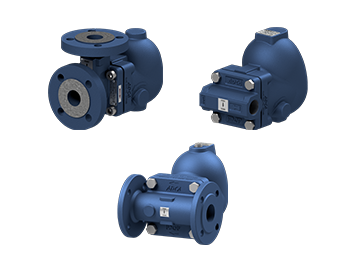

FA line of air and gas vents for liquid systems, manufactured in SG iron and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

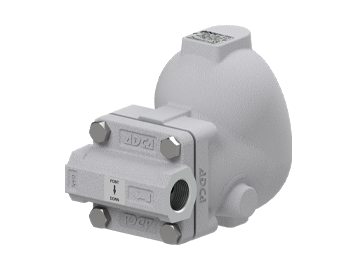

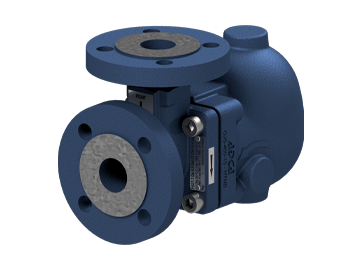

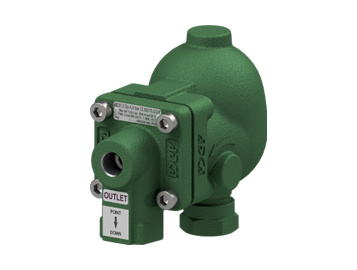

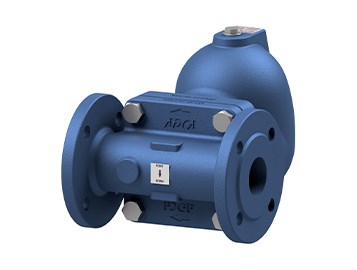

FA21.1

The FA21.1 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

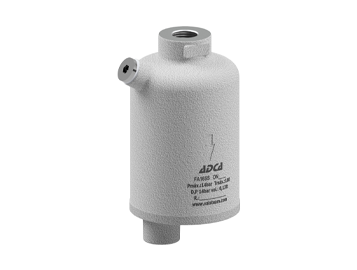

FA25.1

The FA25.1 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

FA25.3

The FA25.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

CARBON STEEL

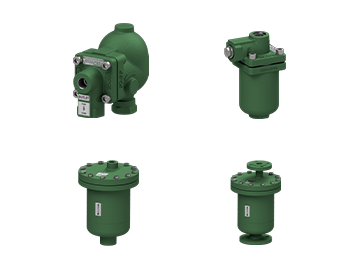

FA line of air and gas vents for liquid systems, manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

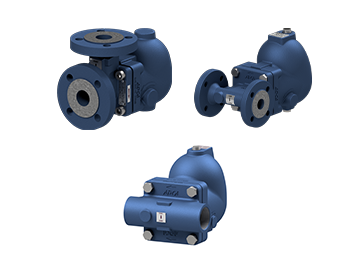

FA31.1

The FA31.1 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

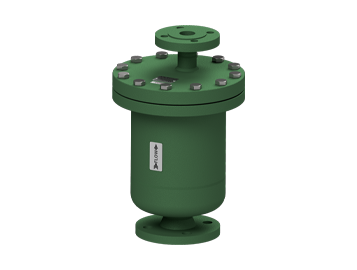

FA35.1

The FA35.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

FA35.3

The FA35.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

STAINLESS STEEL

FA line of air and gas vents for liquid systems, manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

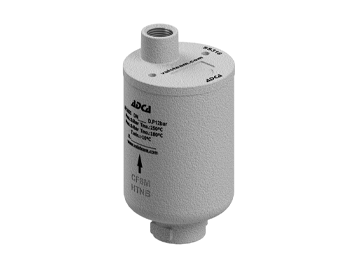

FA16SS

The FA16SS series are fully automatic ball float traps, extremely compact in dimension and light in weight, specially designed for draining water from compressed air lines. Usual applications include aftercoolers, separators and compressed air mains.

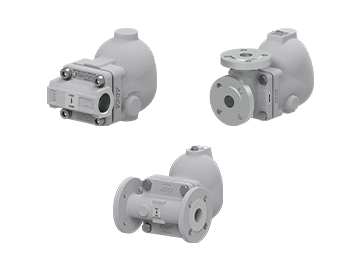

FA41.1

The FA41.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

FA45.1

The FA45.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

FA45.3

The FA45.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

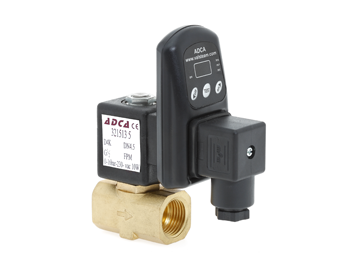

CAD

The CAD - Compressed Air Automatic Drain Valve consists of a solid-state timer coupled to a solenoid valve. The CAD is specially designed for automatic draining of filters, separators, aftercoolers, dryers, receivers, drip legs and other compressed air system components where condensate and contaminants collect. The draining interval and discharge time can be adjusted according to the requirements.

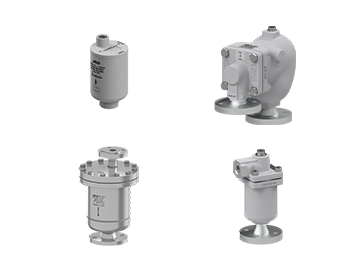

CARBON STEEL

AE line of air and gas vents for liquid systems, manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

AE50S

The AE50 range of automatic vents are designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

AE31.2

The AE31.2 is a series of automatic vents designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

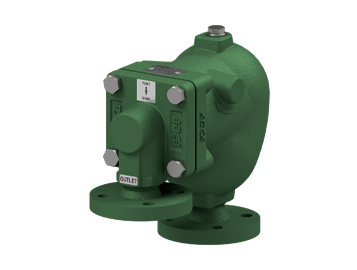

AE35.2

The AE35.2 range of automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

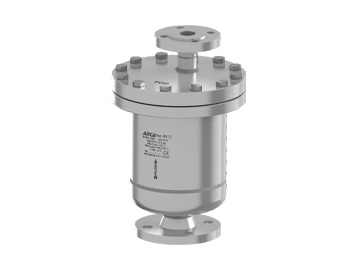

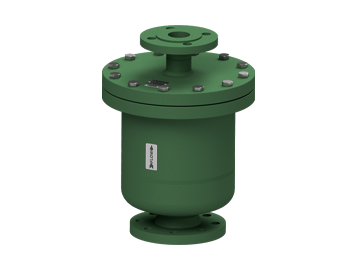

AE37.2

The AE37.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

AE39.2

The AE39.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

STAINLESS STEEL

AE line of air and gas vents for liquid systems, manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

AE16SS

The AE16SS all stainless steel air eliminator removes air from HVAC systems and are also suitable for non corrosive and/or dangerous liquids compatible with the construction, providing that their specific weight is no less than 0,75 kg/dm³. This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.

AE30SS

The AE30SS all stainless steel sealed body air eliminator remove air from hot and superheated water systems and is also suitable for all liquids compatible with the construction, providing that their specific weight is not less than 0,75 kg/L. This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.

AE50i

The AE50 range of automatic vents are designed to remove air or gases from water and other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice. These ball float type vents are manufactured in stainless steel, available with soft sealing, and can be used in combination with other air elimination and separation systems or directly applied at high points in the pipelines.

AE41.2

The AE41.2 range of automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

AE45.2

The AE45.2 range of automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

AE47.2

The AE47.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

AE49.2

The AE49.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

VB21 – VB21M

The VB21 vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure. This device is particularly suitable for steam heated units of small and medium volume as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.

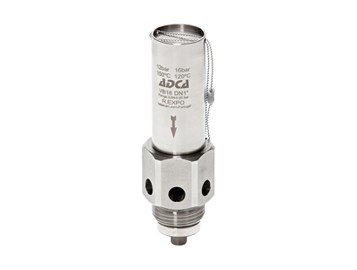

VB16

The VB16 vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure. This device is particularly suitable for steam heated units of small and medium volume, such as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.

IS140

The IS140 strainers are applicable to all types of steam, water, oil and air systems. Their purpose is to protect traps, regulating valves, piping, etc. from dirt and impurities, which are often the cause of damage and consequent energy loss of fluid systems.

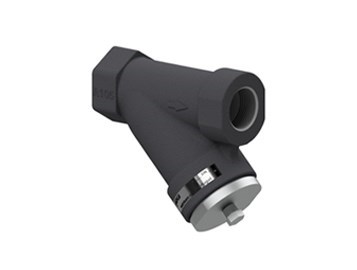

IS116

The IS116 forged steel Y strainers are applicable to all types of steam, water, oil and air systems. Their purpose is to protect traps, regulating valves, piping, etc. from dirt which are often the cause of damage and consequent energy loss of fluid systems.

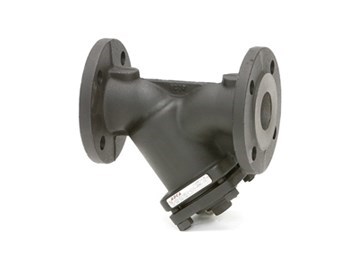

IS16F

The IS16F cast iron Y strainers are applicable to all types of steam, water, oil and air systems. Their purpose is to protect steam traps, regulating valves, piping, etc. from dirt which is often the cause of damage and consequent energy loss of fluid systems.

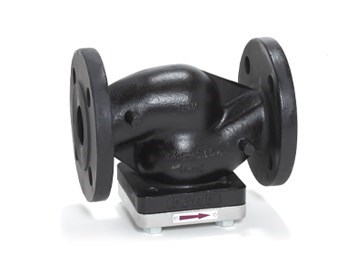

IS40T (EN)

The IS40T cast steel T strainers are applicable to all types of steam, water, oil and air systems. Their purpose is to protect steam traps, regulating valves, pressure reducing valves, piping, etc. from dirt which are oftentimes the cause of damage and consequently energy loss of fluid systems.

IS40T (ASME)

The IS40T cast steel T strainers are applicable to all types of steam, water, oil and air systems. Their purpose is to protect steam traps, regulating valves, pressure reducing valves, piping, etc. from dirt which are oftentimes the cause of damage and consequently energy loss of fluid systems.

TR25S | DN 15 - 25

The ADCATROL BCS-211 controller is part of the dissolved solids (TDS) control system used in steam boilers. This system is composed of a SPS series conductivity probe, a BCS-211 controller, a VPC series blowdown valve and, in case of need, a UC-820 universal process controller for PID control.

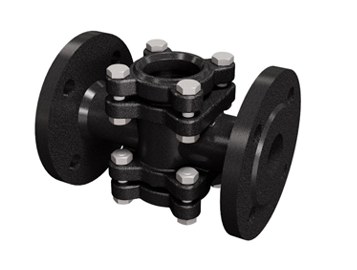

DW40S

For monitoring the right operation of a steam trap, in order to avoid leakages of live steam and, consequently, great energy losses, a sight glass is recommended to be installed downstream of the steam trap. The double window DW40 sight glasses have been designed for this particular application.

DW40SS

For monitoring the right operation of a steam trap, in order to avoid leakages of live steam and, consequently, great energy losses, a sight glass is recommended to be installed downstream of the steam trap. The double window DW40 sight glasses have been designed for this particular application.

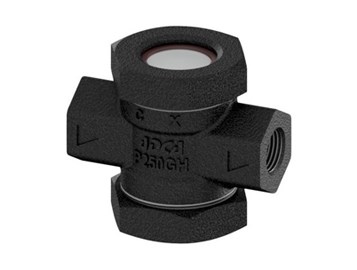

SCKI

The SCKI sight checkers function as both sight glasses and check valves. Installed after the steam trap, the sight checker is a device whose main purpose is to visually check the condition and potential leakages of steam traps.

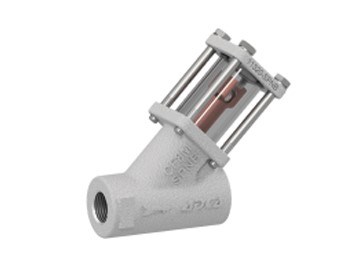

DW12G-SS

For monitoring the right operation of a steam trap, in order to avoid leakages of live steam and, consequently, great energy losses, a sight glass is recommended to be installed downstream of the steam trap. The double window DW12 sight glasses has been designed for this particular application.

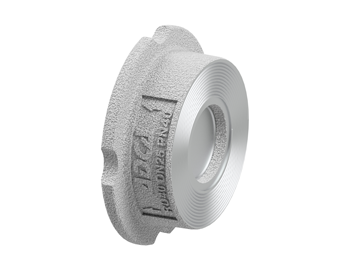

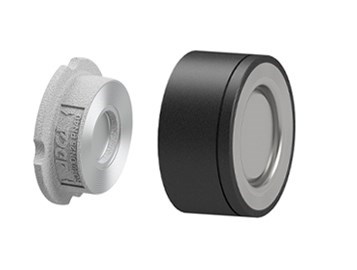

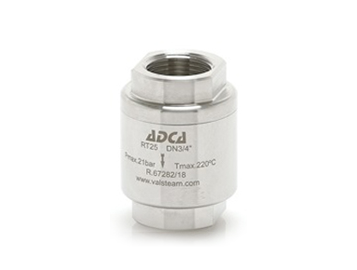

RT25

The RT25 all stainless steel disc check valves have a compact design and were specially designed for use with steam and hot condensate.

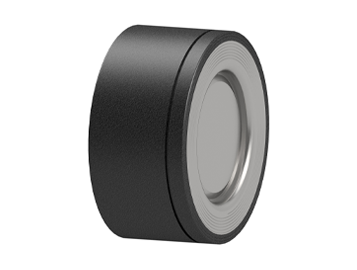

RD40

The RD40 all stainless steel disc check valve has a compact design and was specially designed for use with steam and hot condensate.

RD40 | DN15 - 100
RD40 | DN 125 - 200

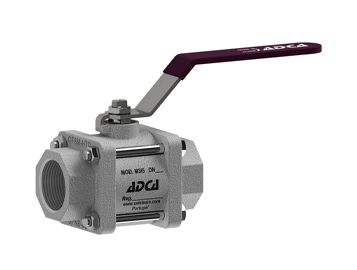

M3i5

The M3i5 three piece ball valves are reduced bore isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

M3i1

The M3i1 three piece ball valves are full bore isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

M3S1

The M3S1 three piece ball valves are full bore isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

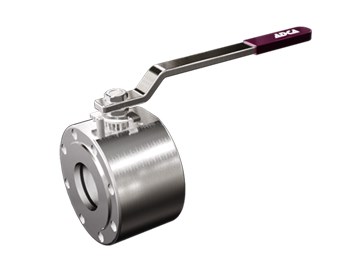

MWS1 / MWi1

The MWS1 and MWi1 series wafer ball valves are compact isolating valves designed for on/off applications with steam, condensate and other gases and liquids compatible with the construction.

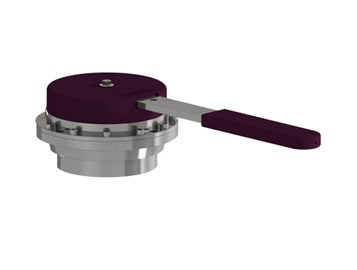

SRH

The SRH Spring return handle consists of a spring box which, when assembled, switches the ball valve to a safe position (closed or open), as soon as the operator releases its handle.

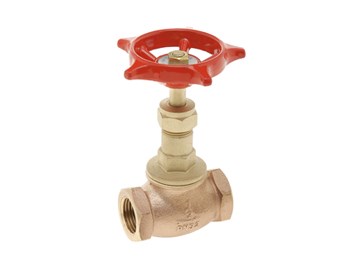

GV32B

The GV32B bronze in-line stop valves are designed for use with steam, water, oil or air applications.

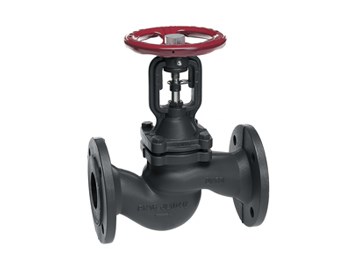

VF20

The VF20 series are streamlined flow valves with bellows, outside screw, no rising stem and maintenance-free. They are specially recommended for use with steam, gases, liquids, condensate, thermal oil and water systems

VF40

The VF40 series are streamlined flow valves with bellows, outside screw, no rising stem and maintenance-free. They are especially recommended for use with steam, gases, liquids, condensate, thermal oil and water systems.

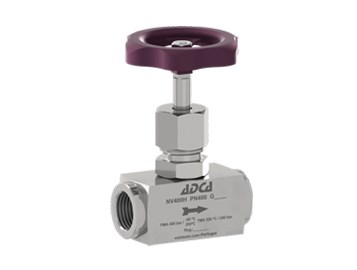

NV400

The NV400 is a series of high-pressure needle valves designed for shut-off applications with steam and other industrial fluids. The NV400B is a special version designed for use as a boiler water sample valve when connected to the bottom sample connection on a VPC TDS blowdown control valve.

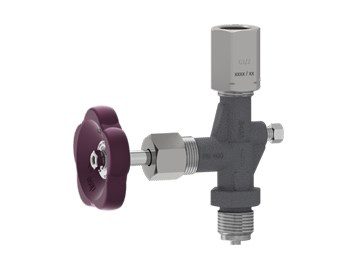

GC400

The GC400 gauge valves were designed for mounting of instruments such as pressure gauges, transmitters and switches. Throttling of the valve protects the connected instrument against pressure spikes. Complete valve shut-off and pressure release through the integrated vent plug allow safe instrument removal for replacement or calibration procedures.

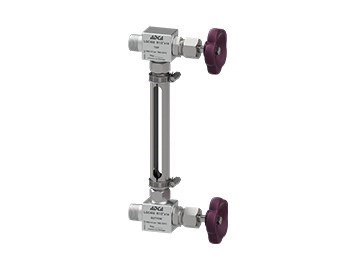

LGC400

The LGC stainless steel level gauge valves are specially conceived to supervise the functioning and visualize the liquid level in pressure operated pumps, reservoirs and other equipment. These valves are designed to be used with tubular glass, which can be supplied with the units.

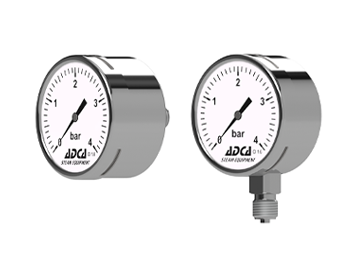

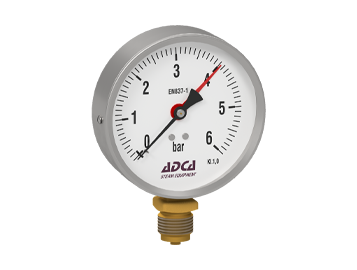

MAN-100

The MAN-100 pressure gauges have a diameter of 100 mm and are marked in bar.

MAN-63

The MAN-63 are reliable general purpose bourdon tube pressure gauges designed for pressure measurement of liquid and gaseous media. These units have a size diameter of 63 mm, range marked in bar and are fully manufactured in stainless steel.

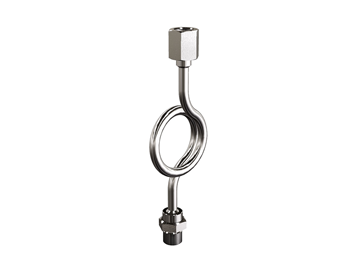

GSC / GSU

The GS series pressure gauge siphons were designed to protect pressure gauges from the effects of sudden pressure surges and hot pressurized fluids. They operate as cooling elements for liquids and gases in pressure measuring devices. An isolation pressure gauge cock is recommended to be installed in combination with gauge siphons.

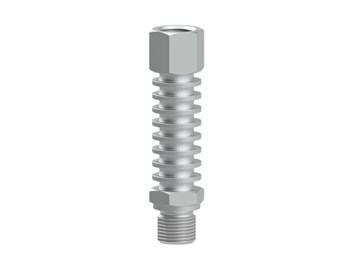

GSV

The GSV series pressure gauge siphons have been designed to protect pressure gauges from the effect of rapid pressure surges and hot pressure fluids. Specifically designed to replace the traditional “pigtail” and other coil design siphons where it is necessary to eliminate gauge whip and vibration. They operate as cooling elements for liquids and gases in pressure measuring devices.
