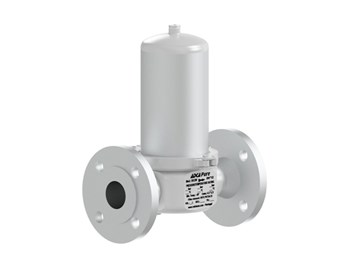

The ISC16 high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves. Up to 3” / DN 80, they are joined by a food industry fitting according to DIN 11851 and the larger sizes DN 100 to DN 200 by flat flanges fixed with bolts and nuts.
- SIZES1/4” to 3” – DN 10 to DN 80
- CONNECTIONSFemale threaded ISO 7 Rp or NPT Flanged EN PN 16 Flanged ASME Class 150
- MAX. OPERATING PRESSURE 10 bar @ 200 ºC

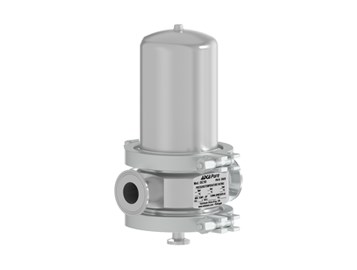

The ISC20I high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves, joined by a sanitary clamp ferrule according to DIN 32676 Series A, with drain connection on bottom.
- SIZES1/4” to 2” – DN 10 to DN 80
- CONNECTIONSFemale threaded ISO 7 Rp or NPT Flanged EN PN 16 Flanged ASME Class 150
- MAX. OPERATING PRESSURE 10 bar @ 200 ºC

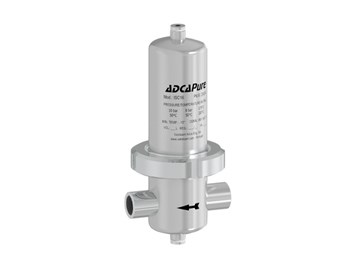

The ISH10I high-efficiency filters are used to remove contaminated particles from gases such as steam and compressed air. The optimized construction of these units offers low differential pressure at high flow rates. All sizes are built in two halves and are joined by a sanitary clamp ferrule according to DIN 32676 Series A.
- SIZES1/2” to 2” – DN 10 to DN 50
- CONNECTIONSASME BPE, DIN and ISO clamp ferrules
- MAX. OPERATING PRESSURE 10 bar @ 200 ºC

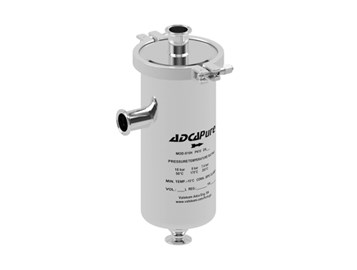

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10H series baffle separators remove moisture from steam pipelines. Steam passes through the separator and as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.
- MATERIALStainless steel
- SIZES1/2” to 3”
- CONNECTIONSASME BPE clamp ferrules
- MAX. ALLOWABLE PRESSURE 10 bar
- MAX. RELATED TEMPERATURE 200 ºC
When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S10HV series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.
- MATERIALStainless steel
- SIZES1/2” to 2”
- CONNECTIONSASME BPE clamp ferrules
- MAX. ALLOWABLE PRESSURE 10 bar
- MAX. RELATED TEMPERATURE 200 ºC

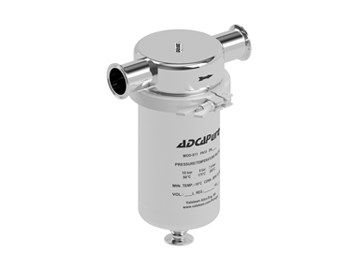

When wet steam is used in sterilization, moisture in suspension reduces the heat transfer efficiency, and the validity of the sterilization process can be compromised. S11 series centrifugal separators remove moisture from steam pipelines. Steam passes through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity are separated, such as water droplets and moisture in suspension. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam trap.
- MATERIALStainless steel
- SIZES1/2” to 2”
- CONNECTIONSASME BPE clamp ferrules
- MAX. ALLOWABLE PRESSURE 10 bar
- MAX. RELATED TEMPERATURE 200 ºC

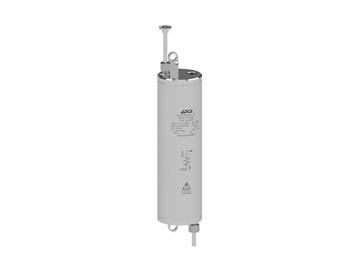

The ADCAPure SC32P sample cooler consists in a helical-coil heat exchanger used to take samples quickly and safely from steam generators, clean or pure steam systems, WFI and other high purity mediums. Its spiral design saves significant space without compromise and a counter current flow path maximizes heat transfer and consequently cooling efficiency. The vertical sampling side ensures self drainability, as medium flows naturally by gravity to the sample outlet with no chance to remain inside.
- MATERIALStainless steel
- SIZES AND CONNECTIONS Cooling water inlet/outlet: 1/2” on body or 3/4" tri-clamp Sample tube inlet/outlet: 8 mm O/D Alternative 1/2" tri-clamp compatible
ADCAPure tailor made equipment, such as skid mounted systems, clean steam injectors, mushroom style air vents, and others, are available as a complement of this wide sanitary range.
