The VB16C vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure. This device is particularly suitable for steam heated units of small and medium volume, such as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.
- MATERIALStainless steel
- SIZES1” – DN 25
- CONNECTIONSASME BPE, DIN and ISO clamp ferrules
- MAX. OPERATING PRESSURE 13 bar @ 38ºC
- MAX. OPERATING TEMPERATURE 170 ºC

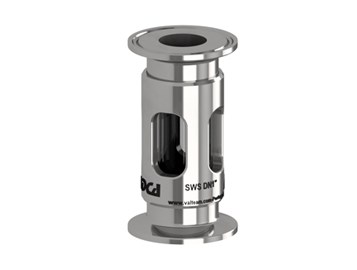

The SWS sanitary sight glasses are designed to monitor liquid flow in any direction. Sight glasses (or flow indicators) are usually employed to detect either the presence or absence of fluid flow, turbulence, colour, etc. They are especially recommended for high purity applications.
- MATERIALStainless steel
- SIZES1/2” to 4”
- CONNECTIONSASME BPE clamp ferrules
- MAX. OPERATING PRESSURE 20 bar
- MAX. OPERATING TEMPERATURE 200 ºC

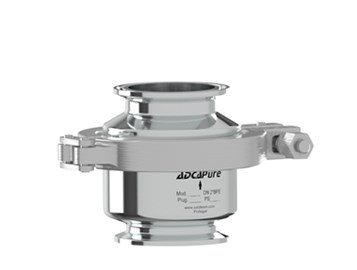

The SRT10 all stainless steel disc check valve has a compact design and is specially designed for use with clean steam, hot condensate and other process fluid applications. They are particularly recommended for high purity applications.
- MATERIALStainless steel
- SIZES1/2” to 4”
- CONNECTIONSASME BPE clamp ferrules or tube weld (ETO) ends
- MAX. OPERATING TEMPERATURE 200 ºC
- RATING PN 10

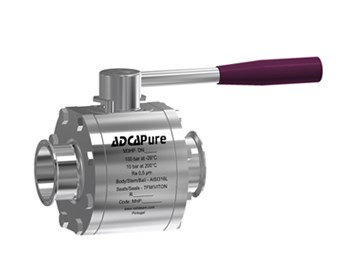

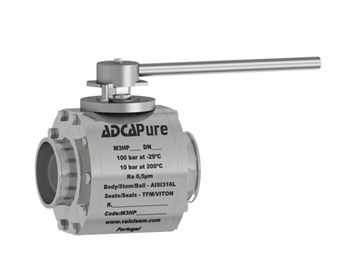

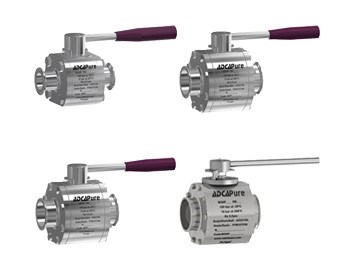

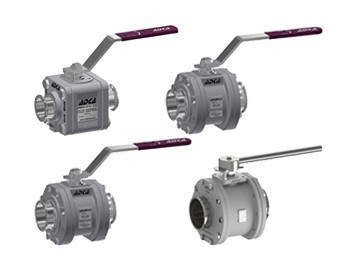

M3HP three piece body ball valves are isolating valves designed for use with clean steam, condensate and other gases and liquids used in high purity and aseptic processes. The valve is not designed as a control valve and should only be used as an isolating valve, fully open or fully closed. The product is mainly designed for the pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.
- MATERIALStainless steel
- SIZESDN 15 and DN 25
- MAX. OPERATING TEMPERATURE220 ºC
- RATING PN 100
- MATERIALStainless steel
- SIZESDN 65 to DN 100
- MAX. OPERATING TEMPERATURE220 ºC
- MATERIALStainless steel
- SIZESDN 15 to DN 50
- MAX. OPERATING TEMPERATURE220 ºC
- RATING PN 100
- MATERIALStainless steel
- SIZES21/2” to 4”
- MAX. OPERATING TEMPERATURE220 ºC
- RATING PN 40

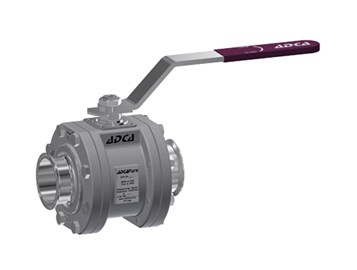

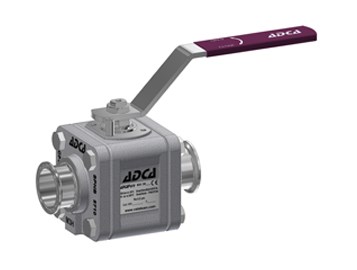

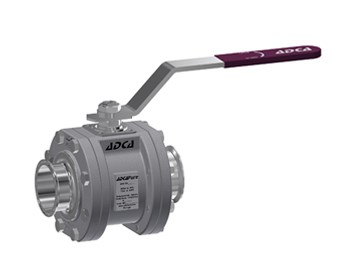

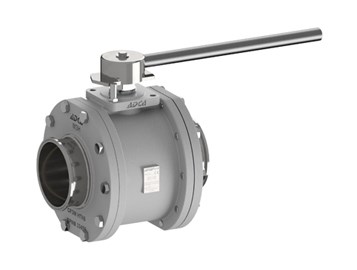

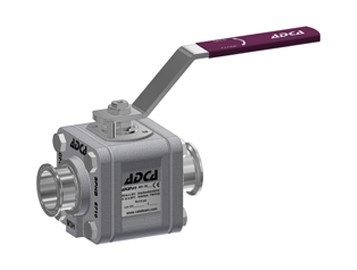

M3H three pieces body ball valves are isolating valves designed for use with clean steam, condensate and other gases and liquids used in high purity and aseptic processes. The valve is not designed as a control valve and should only be used as an isolating valve, fully open or fully closed. The product is mainly designed for the pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.
- MATERIALStainless steel
- SIZESDN 10 to DN 50
- MAX. OPERATING TEMPERATURE 220 ºC
- RATING PN 100
- MATERIALStainless steel
- SIZESDN 65 to DN 100
- MAX. OPERATING TEMPERATURE 220 ºC
- RATING PN 40
- MATERIALStainless steel
- SIZES1/2” to 2”
- MAX. OPERATING TEMPERATURE 220 ºC
- RATING PN 100
- MATERIALStainless steel
- SIZES21/2” to 4”
- MAX. OPERATING TEMPERATURE 220 ºC
- RATING PN 40
- MATERIALStainless steel
- SIZES6”
- MAX. OPERATING TEMPERATURE 220 ºC
- RATING PN 16

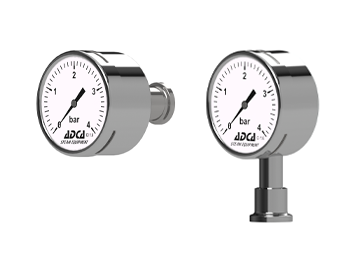

The SMAN-63 are reliable general purpose sanitary bourdon tube pressure gauges designed for pressure measurement of liquid and gaseous media. These units have a size diameter of 63 mm, range marked in bar and are fully manufactured in stainless steel.
- CONNECTIONSASME BPE clamp ferrules. Others on request.
- MAX. OPERATING TEMPERATURE120 ºC
- PRESSURE RANGES 0 to 4 bar / 0 to 6 bar
0 to 10 bar / 0 to 16 ba - ACCURACY ±2,5% FS
- AMBIENT TEMPERATURE - 10 ºC to 60 ºC
