ADCA PRODUCTS

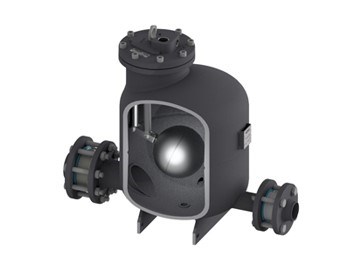

The ADCAMAT POP (Pressure Operated Pump), fabricated in carbon steel (stainless steel on request), is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

The ADCAMat POP pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

The ADCAMat POP pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel.

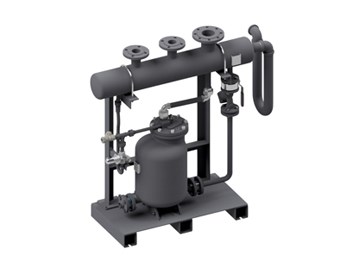

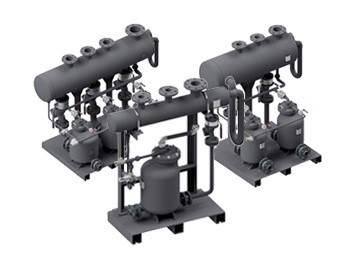

The POPS-K packaged pump units can be used to lift or displace hot condensate and other liquids even in hazardous areas.

A POPS-K packaged unit is comprised by an ADCAMat pump, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection. Packaged units save time, work and site costs. In addition, they ensure that the installation of the pump is correct in every detail.

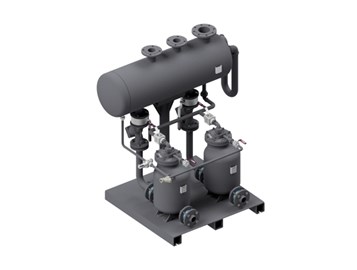

A POPS-KD (Duplex) packaged unit is comprised by two ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection

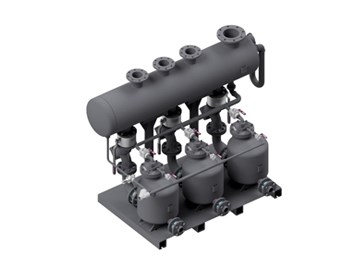

A POPS-KT (Triplex) packaged unit is comprised by three ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection.

The ADCAMat POP-LC low capacity pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure.The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

The ADCAMat PPT14 automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop. The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit.

The ADCAMat APST automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop. The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit.

The ADCAMat PPA312 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

The ADCAMat PPA14 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

The ADCAMat PPO14 pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

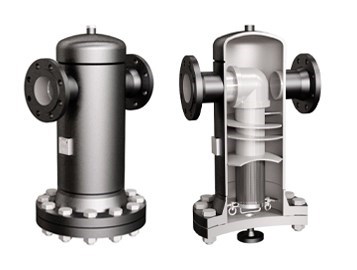

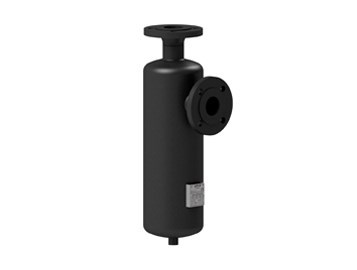

The S16 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

The S25 series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impacts and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

The SF251/S series centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

The SH25/S series horizontal centrifugal separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

The S30 series baffle separators remove moisture from steam and compressed air pipelines. Steam and compressed air pass through the separator and, as a result of expansion, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale, are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by suitable steam or compressed air trap.

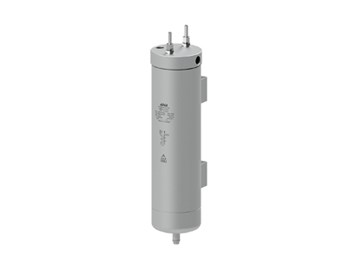

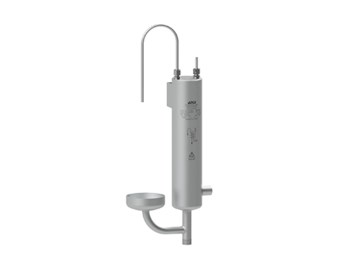

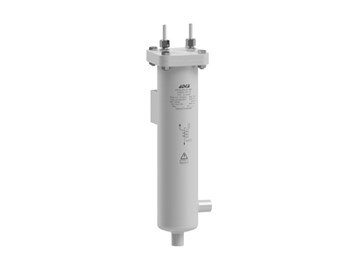

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect water sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

The ADCA sample coolers are specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurized liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

The ADCA sample coolers were specially designed to cool samples of boiler water or steam for analysis. Sample coolers prevent steam flashing-off from hot pressurised liquid samples, which can be dangerous and may result in an incorrect sample. This device may be used for boiler water analysis and other sampling or cooling applications compatible with the construction materials.

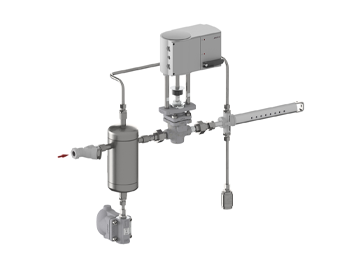

The ADCA DSH series of direct steam injection humidifiers are designed to ensure highly efficient and moisture free steam injection in air ducts and AHU for humidification purposes. These units are completely manufactured from corrosion resistant stainless steel, and are available as plug and play packaged solutions or alternatively as individual components to be incorporated into humidification systems.

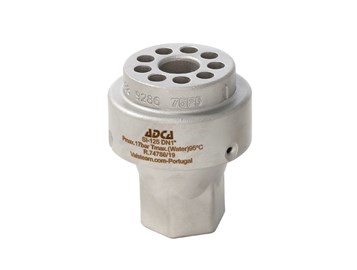

The SI20 series steam injectors from ADCA are condensate injectors. They ensure low noise and vibration and rapid heating of still or flowing fluids in basins and vessels due to direct steam injection.

The SI series steam injectors from ADCA are condensate injectors. They ensure low noise and vibration and rapid heating of still or flowing fluids in basins and vessels, due to direct steam injection. Steam enters through the inlet housing, passes along the center of the heater, mixing with the cool water, which is drawn in through radial holes.

The SI series steam injectors from ADCA are condensate injectors. They ensure low noise and vibration and rapid heating of still or flowing fluids in basins and vessels, due to direct steam injection. Steam enters through the inlet housing, passes along the center of the heater, mixing with the cool water, which is drawn in through radial holes.

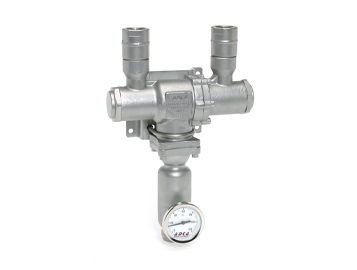

The steam/water ADCAMix MX20 mixers provide a cheap and instantaneous source of low-pressure hot water, by using existing steam and cold water supplies. The mixer incorporates a safety device, to ensure that live steam cannot be accidentally ejected even if, for some reason, the cold water supply fails.

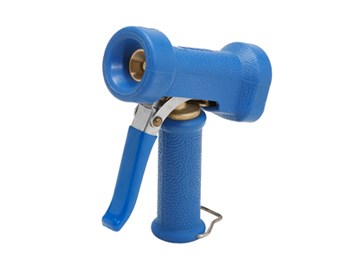

The SG20 series water-saving guns are especially recommended to be used along with the Adcamix MX20 steam to water mixers. By using this gun, water and energy costs can be considerably reduced and it also contributes to environmental protection, avoiding the use of chemicals in the cleaning process.

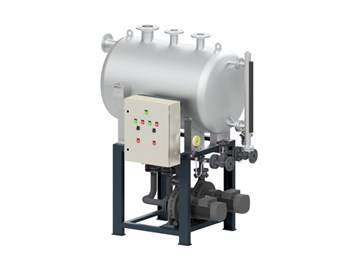

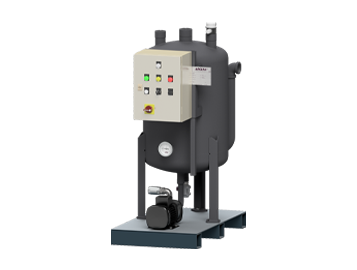

The ADCAMAT ECRU series electric condensate recovery units are recommended in the transfer of high-temperature water such as hot condensate, to a higher elevation or pressure. This condensate is usually used as boiler feedwater. The standard models are prepared for flows up to 20 m3/h, or higher on request. The units are composed of a condensate vessel (receiver), a metallic support frame, electric pumps, level controls, valves, prewired control panel and pipework for connections between the different elements of the units.

The ADCAMat ECRUV series electric condensate recovery units are recommended in the transfer of high-temperature water such as hot condensate, to a higher elevation or pressure. This condensate is usually used as boiler feedwater. The standard models are prepared for flows up to 4 m³/h. The units are composed of a vertical condensate vessel (receiver), a metallic support frame, electric pump, level controls, valves, prewired control panel and pipework for connections between the different elements of the units.

A complete system conceived for instant production of heated water using steam as primary fluid. Ready to work, just needs the connections to the respective fluids. This system is ideal whenever there is enough energy available for instant heating.

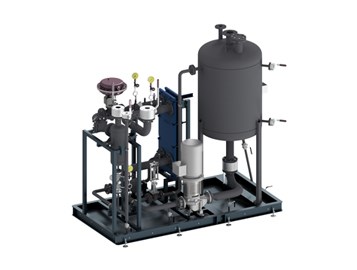

The ADCATtherm FRECO – flash steam heat recovery unit – is a skid mounted package unit to facilitate heat recovery from flash steam, condensate or both. The Freco is especially recommended for heating a continuous flow of fluid, such as make-up water to a boiler feedwater system. Non-continuous flow applications may require additional recirculation, relief valves, or other devices, to avoid system damage due to overheating and consequent overpressure.

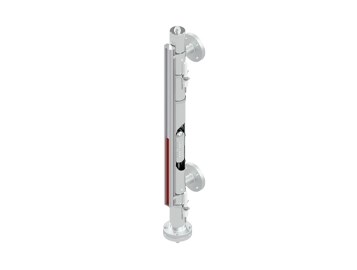

The MLI series of bypass type magnetic level indicators were designed for continuous level indication and/or control in ADCA ECRU units and other special SKID mounted packages. The indicators can be equipped with multiple MSB reed switches for alarm purposes or a side mounted level transmitter for continuous level monitoring.

The ADCA STS series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tube has the advantage that it can improve the external surface and thermal performance.

The ADCA ST series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tubes has the advantage that it can improve the external surface and thermal performance.

The ADCA ST series steam to water shell and tube heat exchangers are shorter and lighter than the alternative shell and tube exchangers manufactured with smooth pipes. The use of extruded low fin tubes has the advantage that it can improve the external surface and thermal performance.

The ADCATherm PAT plate heat exchangers (gasketed and bolted), consist of a variable number of pressed heat transfer plates clamped together between a fixed and a movable pressure plate, all assembled in a metal frame.

The ADCA R series steam to water tubular heating coils are shorter and lighter than the alternative tubular heating coils manufactured with smooth pipes. The use of extruded low fin tube has the advantage that it can improve the external surface and thermal performance.

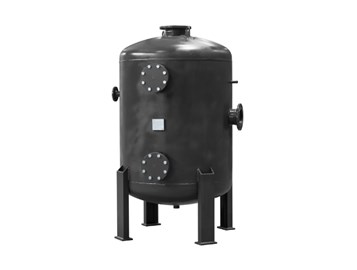

The flash vessel is the main component in any flash recovery system. It can be used in all steam plants where high pressure condensate is reduced to a lower pressure, so that flash steam is formed by reevaporation. This steam can be used in low pressure process or heating equipments.

The flash vessel is the main component in any flash recovery system. It can be used in all steam plants where high-pressure condensate is reduced to a lower pressure, so that flash steam is formed by re-evaporation. This steam can be used in a low pressure process or heating equipment.

The ADCATherm atmospheric semi-deaerators are designed to heat boiler feed water and to reduce oxygen and carbon dioxide (oxygen values in the feed water of less than 1,6 mg/L can be achieved). Remaining oxygen can be completely removed using oxygen-scavenging chemicals. Basically, the complete system consists of a storage vessel, a deaeration head section and a vent.

The TDG series tray-type thermal deaerators are designed to heat boiler feed water and reduce oxygen and carbon dioxide levels (oxygen levels in the feed water of less than 0,02 mg/l - 0,02 ppm can be achieved). Remaining oxygen can be completely removed using oxygen-scavenging chemicals. Basically, the complete system consists of a storage vessel, a deaeration section and a vent.

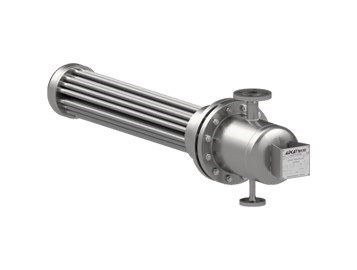

The ADCA flash condensing heads are designed to promote energy efficiency on new or existing systems. Mixing the flash steam with the boiler make-up water allows the energy within the flash steam to be fully absorbed into the water and therefore reduces energy waste that normally occurs from the discharge of flash steam through a vent.

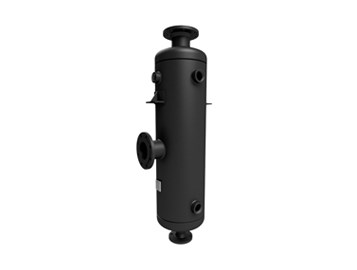

The ADCA BEX series blowdown expansion and cooling units are used in modern boiler houses to cool hot wastewater and steam boiler blowdown before discharging them into a pit or drain. The wastewater is discharged into the unit, which is at atmospheric pressure, and the cooling water enters through a control valve controlled by a thermostat, mixing it with the hot water.

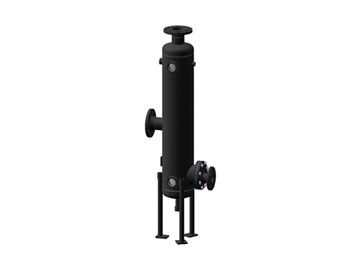

The ADCA BV series blowdown vessels are used in modern boiler houses to cool hot wastewater and steam boiler blowdown before discharging them into a pit or drain. If flash steam can not be recovered or discharged to the atmosphere, an additional condensing water spray system (optional) can be supplied. It is fitted into the top of the unit and can be controlled by a thermostat.

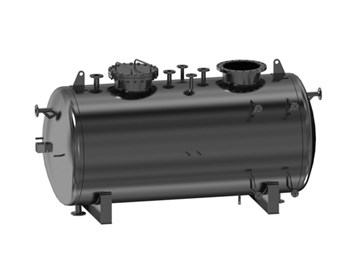

The BFT boiler feed tank is one of the most important devices in a boiler room. Its main function is to store the make-up water and condensate, assuring a reserve of treated water to supply to the steam boilers. The make-up water has to be softened to prevent scale formation on the boiler and the oxygen also has to be removed, so that corrosion in the boiler and steam system is avoided.

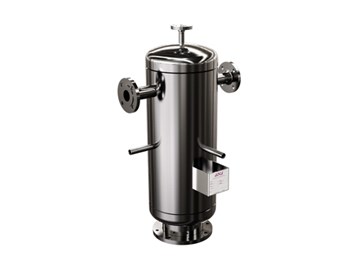

The AS series centrifugal air and dirt separators were designed to be used in the flow line of a hydronic heater or cooling system. The operation is based on the principle of centrifugal force, instead of relying on low-velocity separation, offering the advantage of efficient separation in a smaller vessel. The ADCA AS units provides maximum separation efficiency while minimizing space requirements.

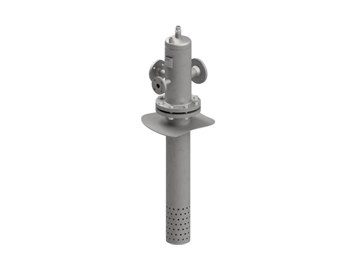

The HCC is a cooling device that allows the mixing of hot condensate with a lower temperature condensate, avoiding hammering. Condensate discharge from higher pressure lines (drip points, for instance) is often connected to low-pressure condensate lines, with lower temperatures. This sudden pressure drop will convert the sensible heat difference between the two fluid conditions into latent heat, generating flash steam.

The EH series exhaust heads were designed to protect personnel from injury and exterior of buildings from harmful effects of steam ejection to atmosphere. The head is fitted at the end of a vertical exhaust pipe and effectively retains the moisture separated from the steam for draining.

The LIPO series of condensate lifting pots are designed for installation in steam and condensate systems. They are particularly used in condensate lines where condensate must be transported without causing water hammers and noise and lifted to elevated condensate mains.

The MAS series steam distribution manifolds are essentially designed to allow the placement of steam supply valves in a single location, reducing costs and providing easy control of different steam lines. The drain connection, with an automatic steam trap installed, discharges any condensate formed, thus providing high-quality dry steam.
